E121 V2
product banner background

E121 V2

E121v2 meets the requirement for a portable and, also installation compact system that can deliver high sound levels, either as a stand-alone system or supplemented by an AVA S2118 Subwoofer. Using a 12” LF driver unit a 1.7” voice coil and 1" exit compression driver on a horn, its 90° x 60° coverage pattern is ideal for medium throw applications. 12 x M8 mounting points allow the user to install the E121v2 in different directions as needed.

1.7″

compression driver

12"

high power woofer

129 dB

maximum SPL

700 W

input power rating

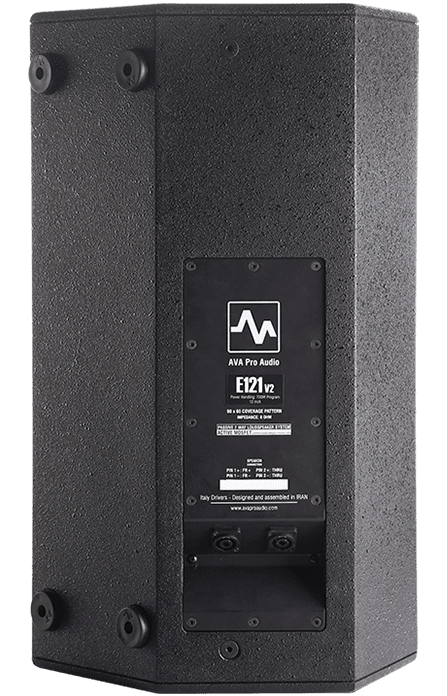

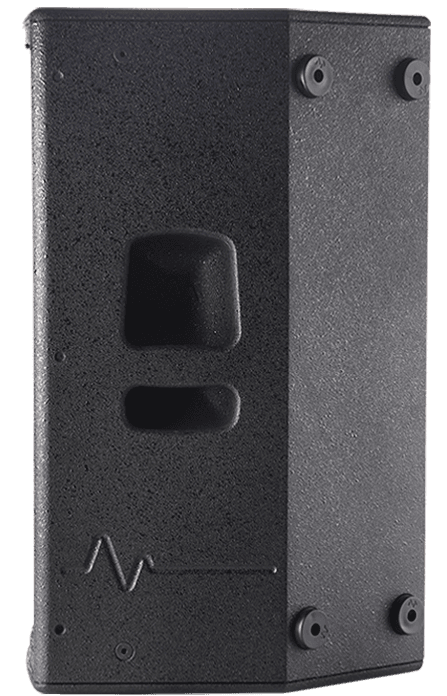

AVA E series, E121,  side view
AVA E series, E121,  side view
AVA E series, E121,  side view
AVA E series, E121,  side view

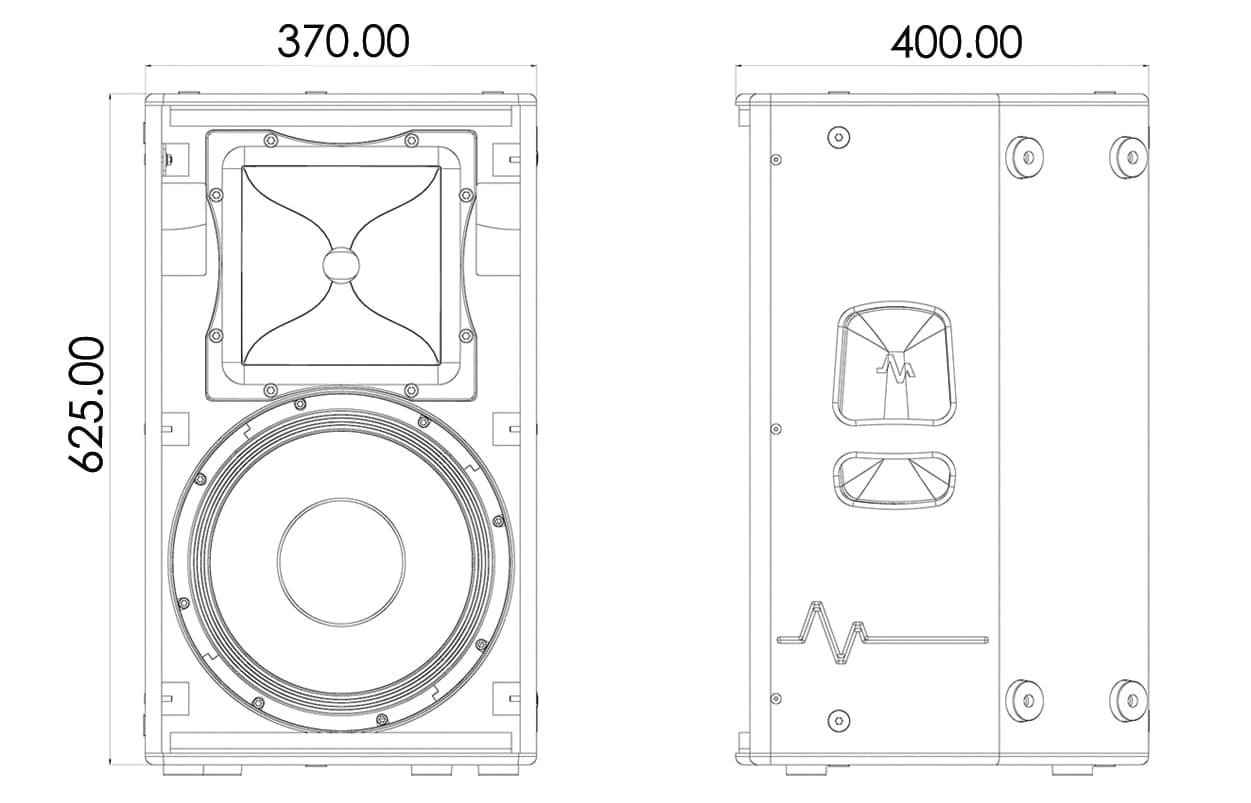

Drawings

نقشه ی فنی برای AVA-E121v2

© All rights reserved. AVA PRO AUDIO, owned by BUG

Download
نقشه ی فنی برای AVA-E121v2

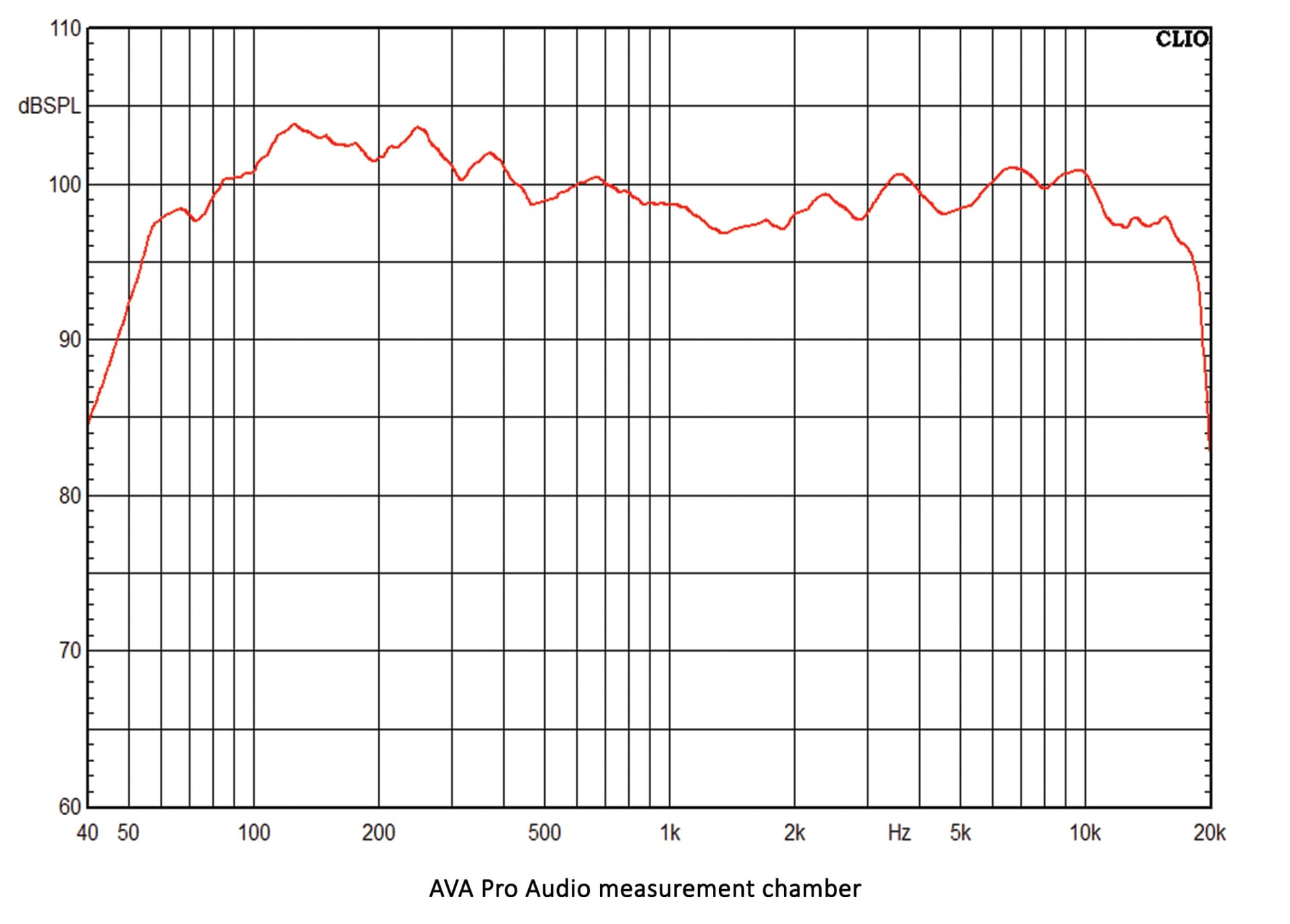

Frequency Response

پاسخ فرکانسی برای AVA_E121v2

© All rights reserved. AVA PRO AUDIO, owned by BUG

Download
پاسخ فرکانسی برای AVA_E121v2

Specifications

Download
