compression driver
high power woofer
maximum SPL
input power rating

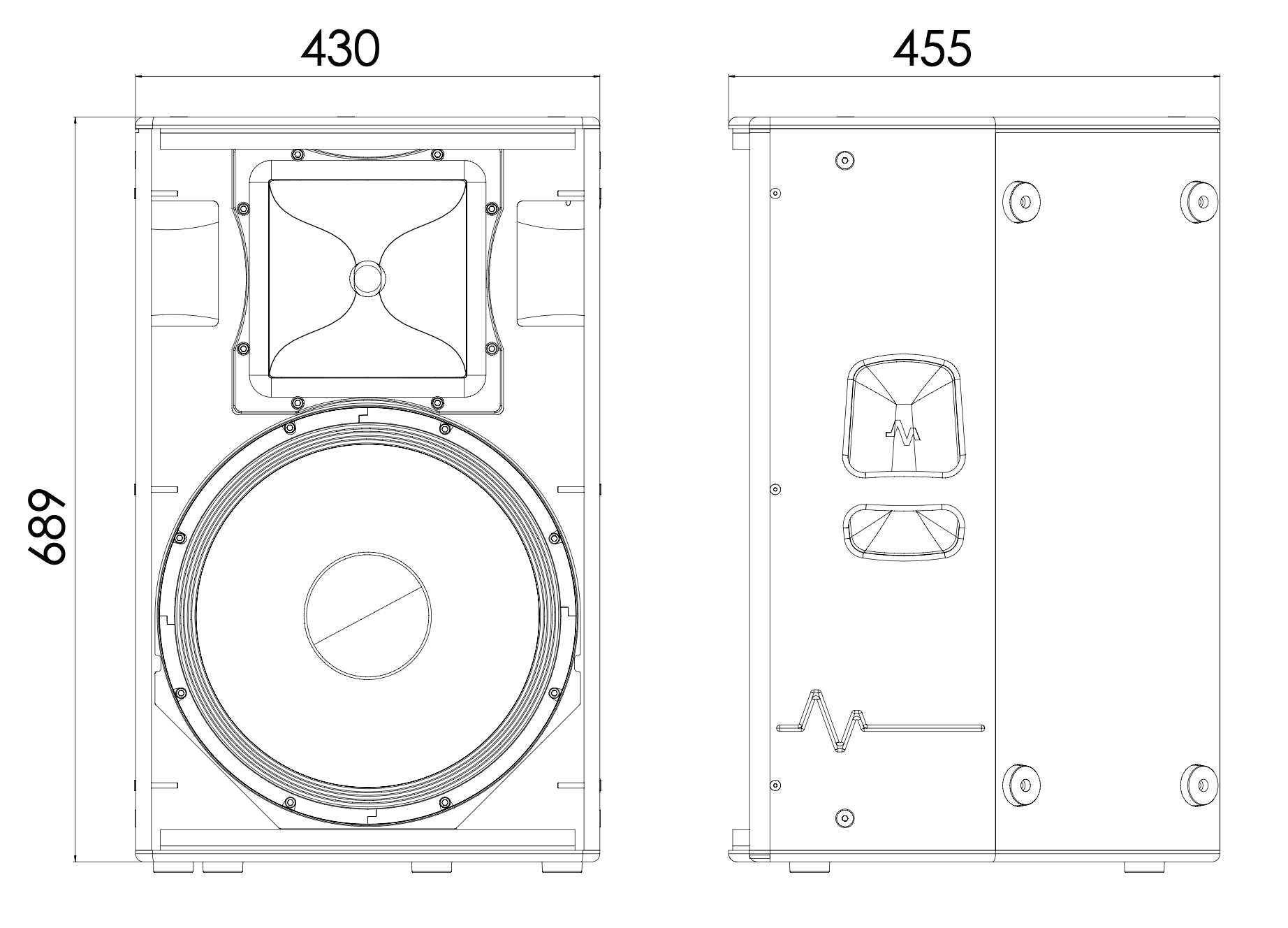

Technical Drawings for AVA-E153A.
© All rights reserved. AVA PRO AUDIO, owned by BUG

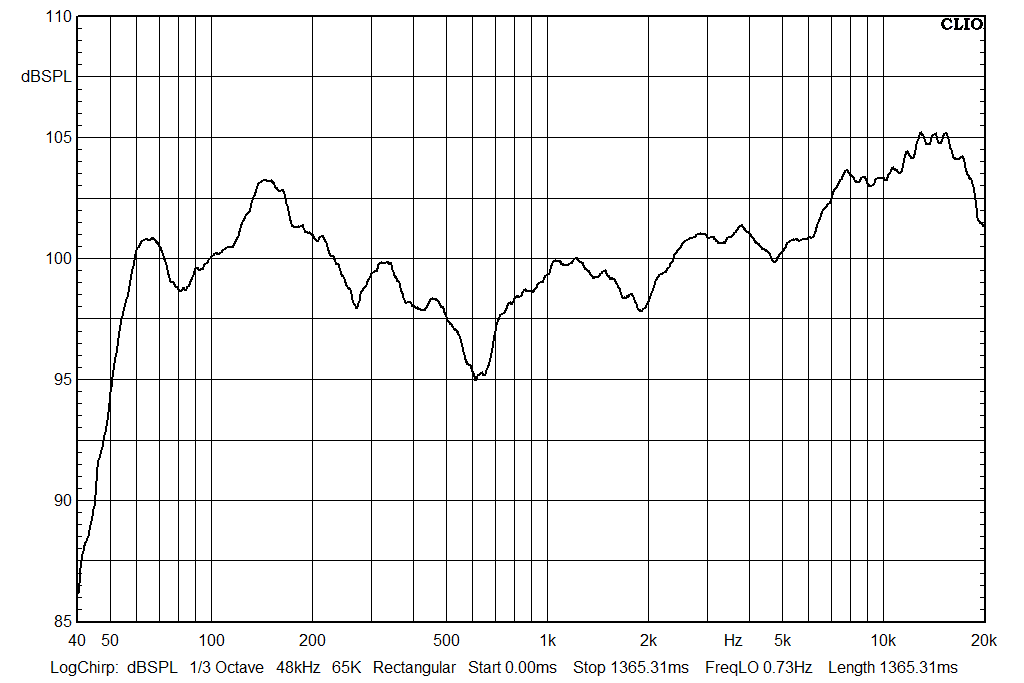

Frequency Response
55Hz - 20kHz
Max SPL @ 1m
132 dB
Horizontal Coverage Angle
90°
Vertical Coverage Angle
60°
Total Power
1200W
High Frequencies
200W
Low Frequencies
1000W
Cooling
CONVECTION
Connections
Powercon IN
Woofer
1 x 15" neo ,3" VC
Compression Driver
1 x 1.4" neo , 2.5" VC
Crossover Frequencies
1800Hz
Protections
Limiter
Controls
DSP preset, Volume
Input Signal
bal/unbal
Input Connectors
1x XLR
Output Connectors
Music Player
USB, Bluetooth
Cabinet/Case Material
15 mm, 11-ply Baltic Birch plywood
Hardware
2 x Handle
Rigging
12 x M8 mounting points
Pole Mount
35 mm pole
Grille
Powder Coated 15 gauge hex-perforated steel with acoustically transparent black cloth
Color
Textured black coating
Net Weight
27.6 kg / 60 lbs
Width
430mm
Height
685mm
Depth
450mm
Shipping Weight
520mm
780mm
490mm
